For gel blaster/nerf gun enthusiasts, using the right battery and charger correctly is key to safety, performance, and long service life. Below is a complete guide to mainstream batteries, chargers, balancing, discharging, and long-term storage.

Common Battery Types for Gel Blasters

The main battery types used in gel blasters are LiPo, NiMH, and Li-ion.

1. Lithium Polymer (LiPo) Battery

  • Single-cell voltage: 3.7V, full charge: 4.2V
  • One cell = 1S; series connection determines S rating:
    • 2S: 7.4V
    • 3S: 11.1V
    • 4S: 14.8V
    • 5S: 18.5V
    • 6S: 22.2V

  • Common specifications: 2S to 6S
  • Pros: High performance, high discharge rate, lightweight
  • Cons: More expensive, delicate, requires proper care

2. NiMH Battery

  • Single-cell voltage: 1.2V
  • Fully sealed, low maintenance
  • Stable performance in low temperatures
  • Safer and more forgiving for beginners

3. Lithium-ion (Li-ion) Battery

  • Single-cell voltage: 3.6V
  • Overall performance better than NiMH
  • Risk: Permanent damage if discharge current is too high
Among them, LiPo battery provides the best performance and highest power, but is also the most sensitive and requires correct use and storage.

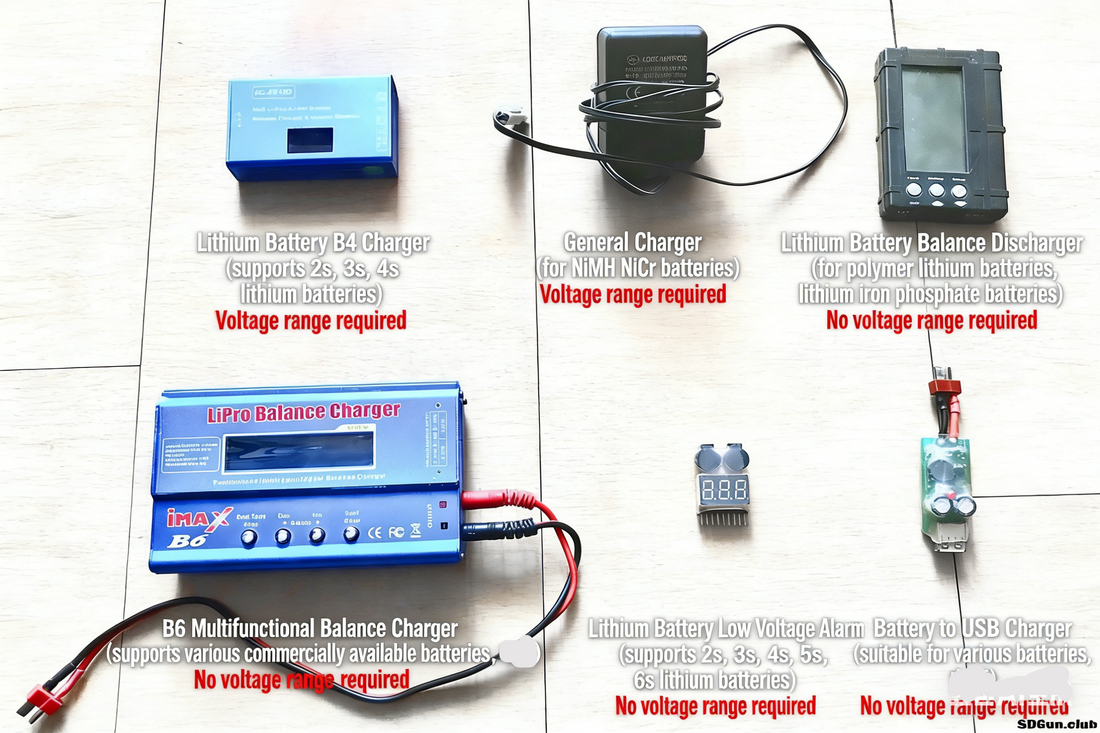

Recommended Chargers for LiPo Batteries

Using a reliable charger is critical for safety and battery life.

B4 Charger

  • Supports: 2S, 3S, 4S LiPo battery
  • Provides safe, balanced charging
  • Built-in protection: Stops charging and alarms if any cell is damaged
  • LCD screen displays real-time voltage of each cell during charging
  • Can also be used to check cell voltage when not charging

B6 Multi-Function Balance Charger

  • Supports: 2S–6S LiPo, NiCd, NiMH, and lead-acid battery
  • Supports both charging and discharging
  • Powerful and versatile for serious users
⚠ Important Warning:
I do not recommend buying extra parallel charging boards. Parallel charging requires strict matching of battery type, capacity, cell voltage difference, and proper operation. Many expensive battery packs have been burned or damaged due to improper parallel charging.

How to Balance & Discharge LiPo Battery

Over time, voltage differences between cells will appear in a LiPo battery.
  • If voltage difference exceeds 0.06V, you must balance the cells to maintain battery life.

Basic Operation (using B6 charger):

  1. Connect the battery to the charger
  2. Screen shows individual cell voltage and total voltage
  3. Press Cancel once to enter balance voltage setting
  4. Set your desired minimum balance voltage
  5. For long-term storage, set the discharge cutoff voltage
  6. Press Cancel to return to main menu
  7. Press Discharge to start balancing
  8. Press Cancel to stop balancing

To run normal discharge:

1. After long-term use, a pressure difference will be generated between the cells of a polymer lithium battery. When the pressure difference exceeds 0.06, we need to balance the pressure difference between the cells to bring the battery life back to the normal range.

2. After inserting the batteries, the device starts up, and the display area shows the voltage of each cell and the total voltage. Press the Cancel button once to enter the voltage balance setting. You can set the minimum balance voltage value as needed.

3. When the battery needs to be stored for a long time, the voltage of each individual battery cell is reduced to the storage voltage. Pressing the Cancel button again sets the minimum discharge voltage for each cell.
4. After setting the various numbers, press the Cancel button again to return to the main menu as it was when you first turned on the device. Press the Discharge button to start the voltage balancing operation between the battery cells. If you want to stop the voltage balancing process, simply press the Cancel button.

5. When you return to the start screen, press Balance to perform a discharge operation, and press Cancel to stop the discharge.

Low-Voltage Alarm for LiPo Battery

A LiPo low-voltage alarm monitors 2S–6S battery cells.
  • Cycles and displays each cell voltage
  • Triggers beep alarm when voltage drops below set value
  • Recommended setting for normal use: 3.5V
  • Recommended setting for storage discharge: 3.65V – 3.75V

Long-Term Storage Guidelines for LiPo Battery

To extend the life of your LiPo battery:
  1. Discharge each cell to storage voltage (around 3.65V–3.75V)
  2. Store in a dry, fire-resistant bag or container
  3. Place battery + desiccant in a sealed plastic bag
  4. Ideal storage temperature: 4°C – 6°C (refrigerator is acceptable)
  5. Check and adjust cell voltage once per month
Proper use of your battery and charger will keep your gel blaster performing reliably while keeping you safe.
