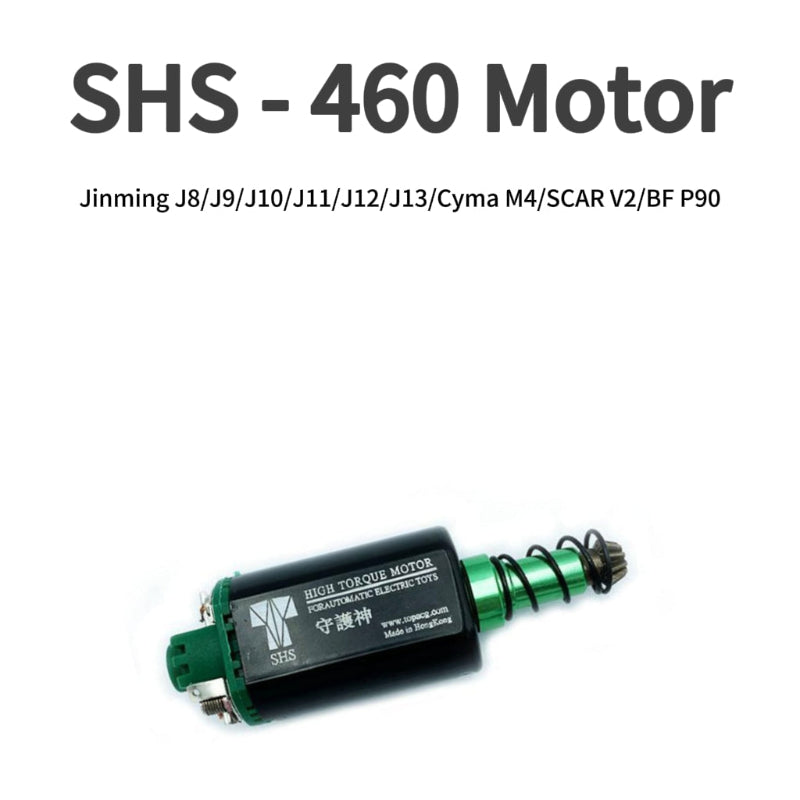

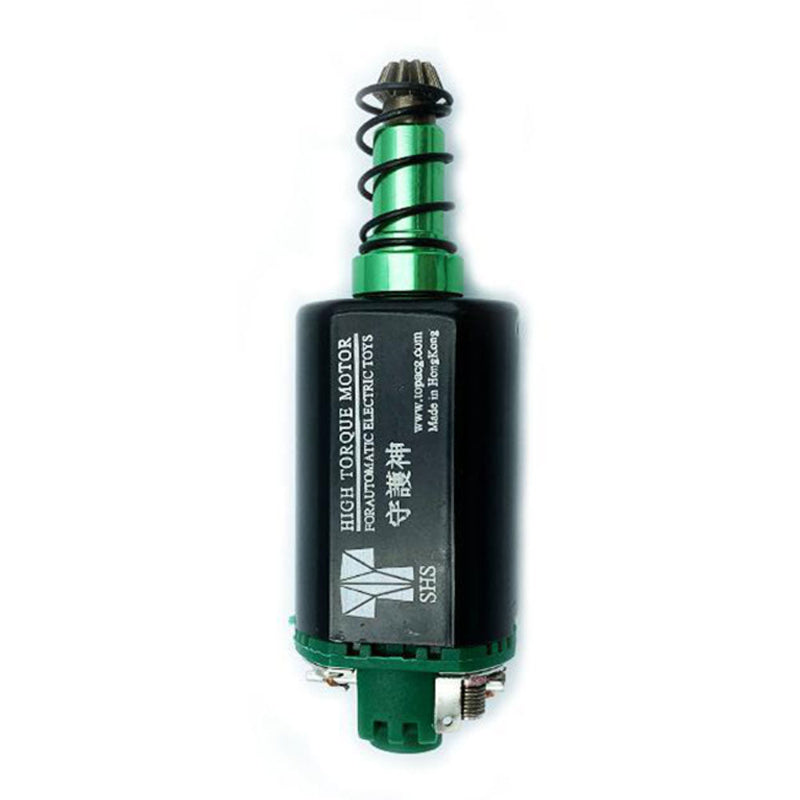

SHS 460 High Torque Motor

460 Motor Introduction：

High-performance 460 long/short shaft motor & 18:1 metal gears set! Strong ferrite magnets, ball bearings, heat-resistant design, stable RPM. Perfect for reliable, high-speed gel blaster upgrades!

Specifications:

• 460 Motor
• Ferrite wet-pressed strong magnets
• Nylon low thermal conductivity, heat-resistant rear cover
• Ball bearing structure
• Imported hardened powder metallurgy bevel gears
• Closed-type electroplated outer shell
• Imported high-performance, wear-resistant carbon brushes
• Armature dynamic balance processing
• 460 torque ratio is smaller than 480, please avoid using fire control
• Recommended battery connectors: Use Tamiya or XT30 connectors.
  For power connection, it's recommended to use 2.8 mm spring connector terminals.

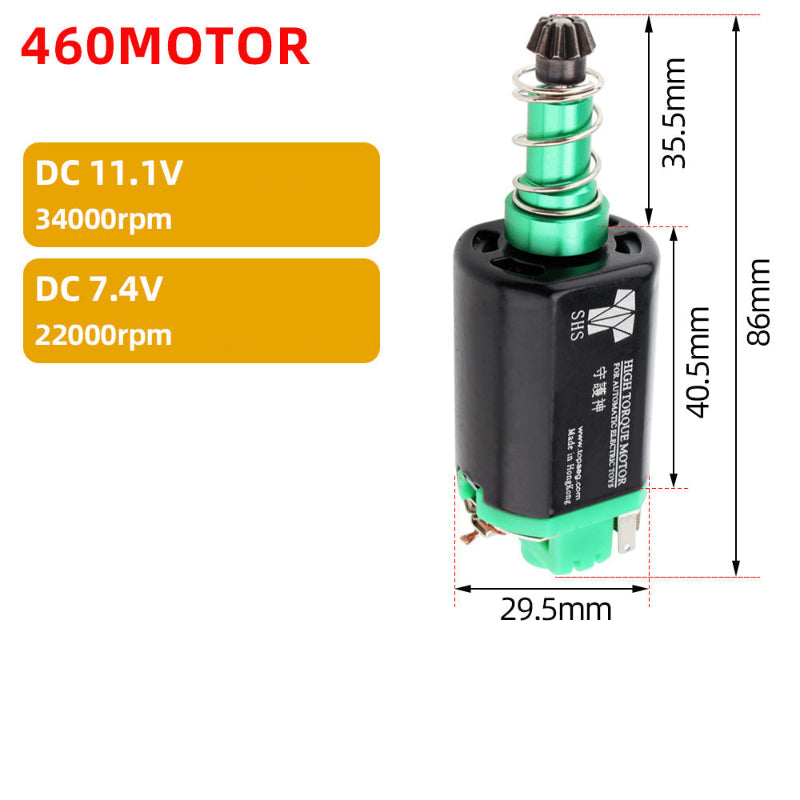

• Long Shaft Motor:
  • 11.1V: 34,000 RPM, 18:1 gear ratio, 24 rounds per second
  • 7.4V: 22,000 RPM, 18:1 gear ratio, 15 rounds per second
  • Dimensions: Width 29.5 mm, Total length 86 mm, Shaft length 35.5 mm
  • Compatible with: J9, J10, Cyma M4

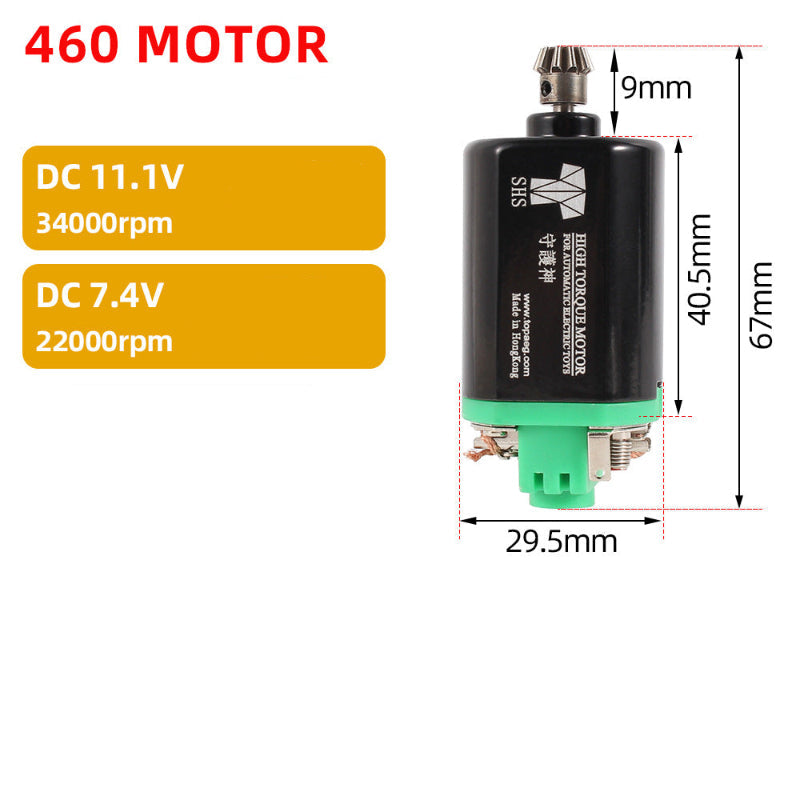

• Short Shaft Motor:
  • 11.1V: 34,000 RPM, 18:1 gear ratio, 24 rounds per second
  • 7.4V: 22,000 RPM, 18:1 gear ratio, 15 rounds per second
  • Dimensions: Width 29.5 mm, Total length 67 mm, Shaft length 9 mm
  • Compatible with: J8, J11, J12, J13, SCAR V2, BF P90

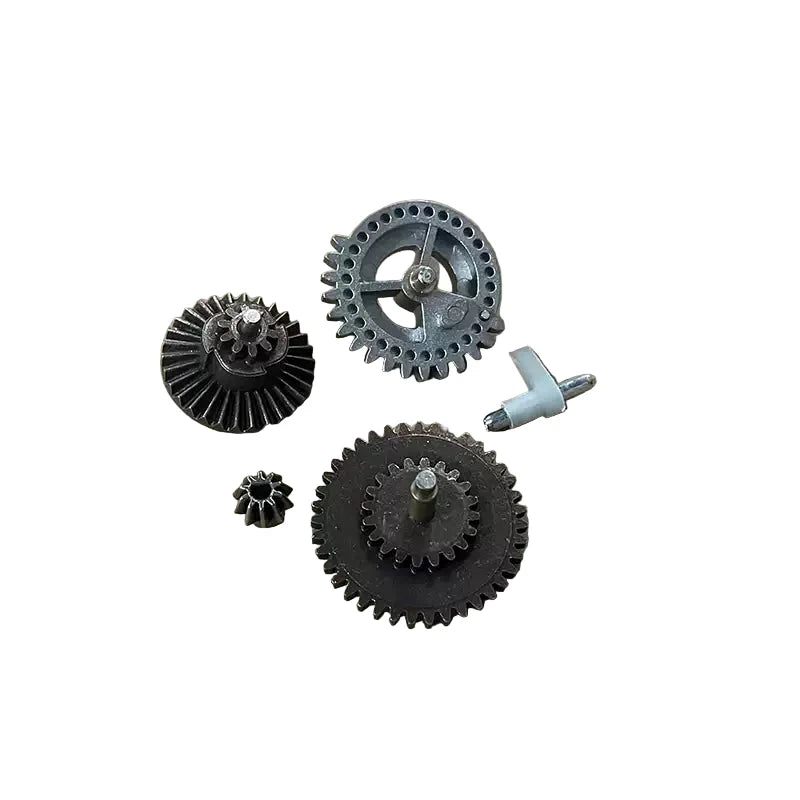

• Metal Gears
  • Compatible with Type 2 Gearbox toy gun and Type 3 Gearbox toy blaster.

  • 1：18
